Frp grating

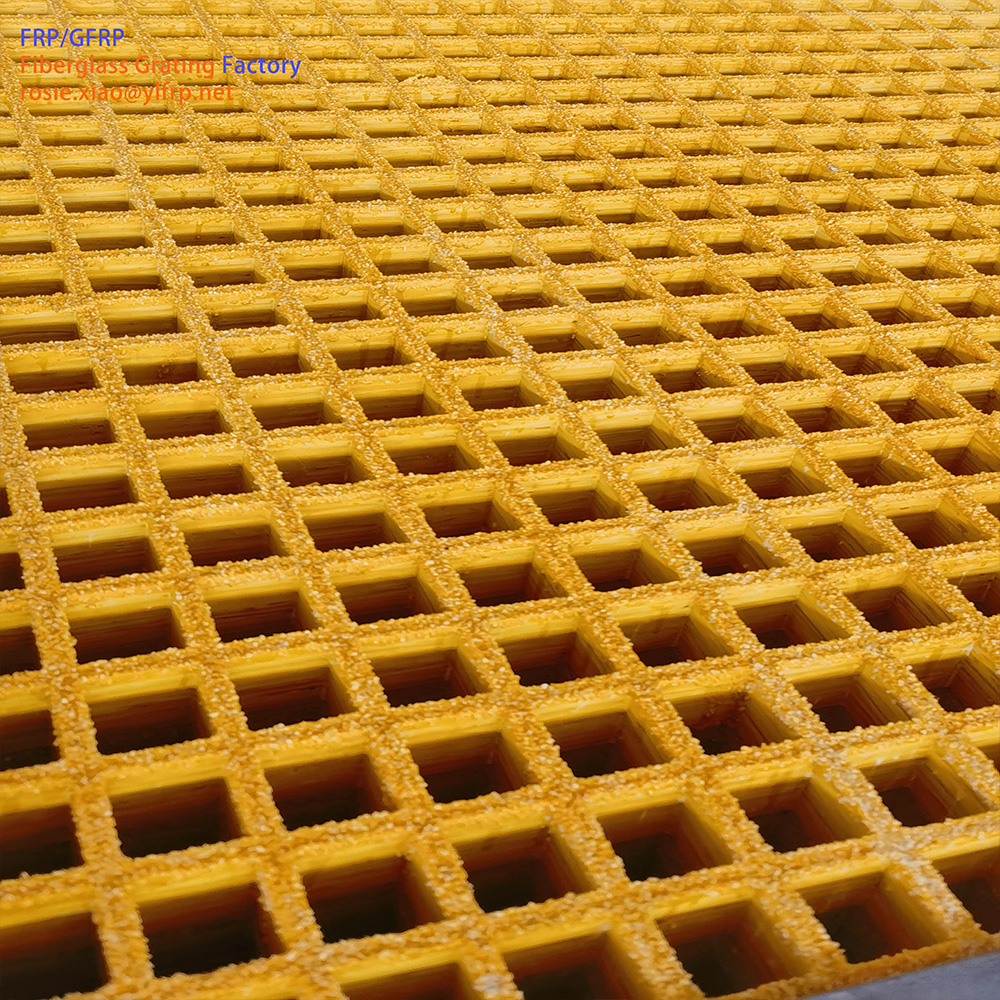

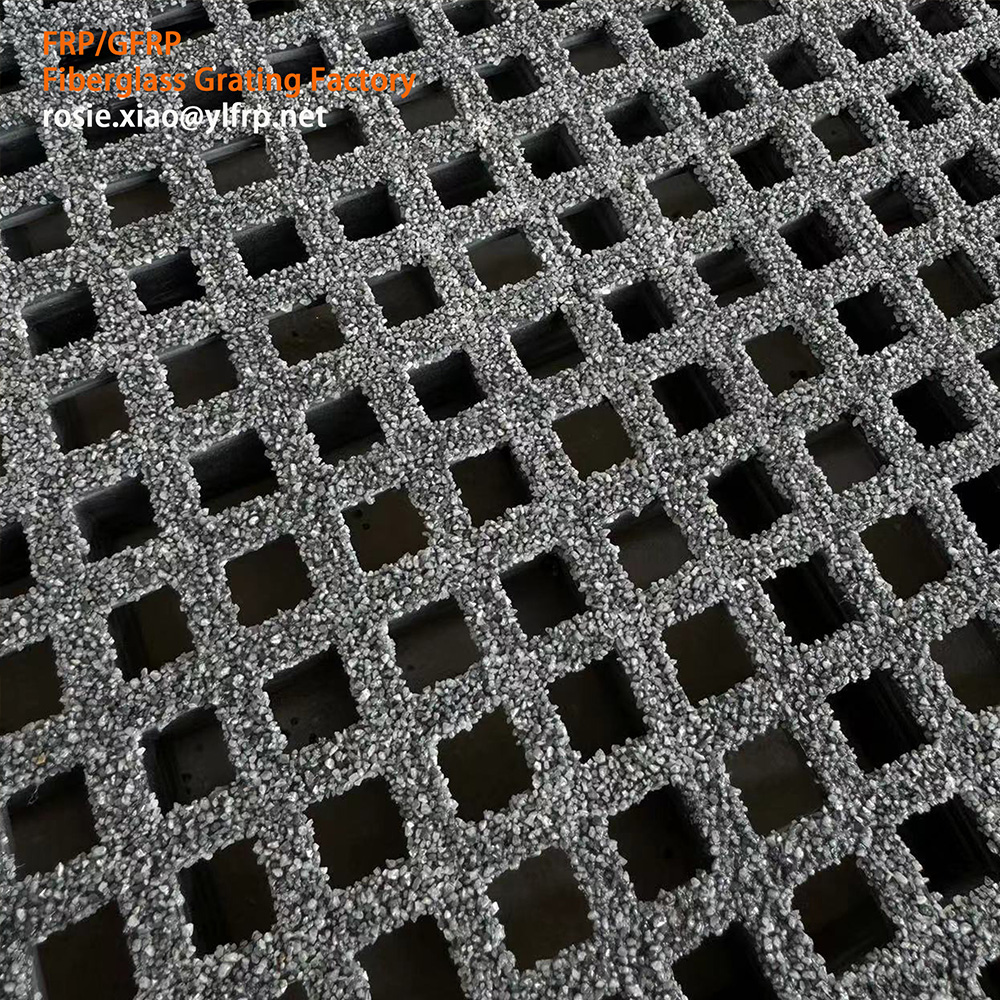

Molded FRP Fiberglass Grating Manufacturer
HUBEI YULONG offers a wide range of molded fiberglass gratings for general purpose, isophthalic or vinyl ester resins. fiberglass grating is non-slip, non-conductive, strong, lightweight and corrosion resistant, and molded fiberglass grating is chemically resistant, strong, lightweight and non-sparking.
Related products
YULONG molded fiberglass grating has many advantages:
– Can produce a variety of materials, specifications and colors, do not fade, suitable for various environments.
– Safety and environmental protection, high strength, strong impact resistance, no deformation.
– Light weight, convenient for transportation and construction.
– It has good insulation.
– Corrosion-resistant and low water absorption, moisture-proof.
– If there is no recycling value, it will not be stolen.
– The life span is more than 20 years.
YULONG fiberglass grating can be applied to:
– FRP grid platform
– FRP operating platform
– glass fiber reinforced plastic walkway, cover
– glass fiber reinforced plastic ladder, shelf
– Equipment and tools
– Food and water treatment
– Environment susceptible to corrosion
– Construction industry
– High voltage and electromagnetic field environment
|

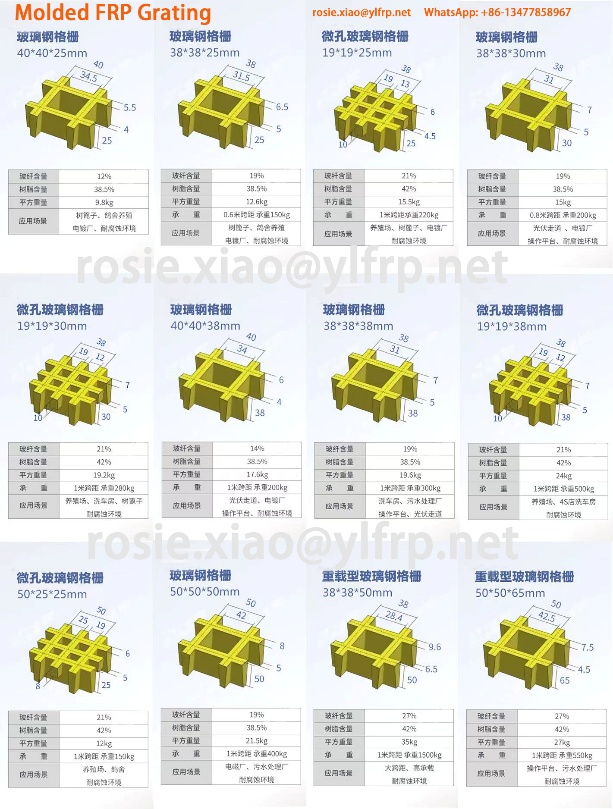

Molded Fiberglass FRP Grating Parameters |
|
|
Type |
Molded FRP Grating |
|
Material |
Fiberglass + Resin base (ORTHO, ISO, VE) +Filler (ATH, CAO) |
|
Size |
38*38*38mm，40*40*40mm, 19*19*30mm, etc. can be customized |
|
Color |
Yellow, Orange, Blue, Green, Grey, etc. can be customized |
|
Surface |
Concaved |
|
Properties rosie.xiao@ylfrp.net WhatsApp +86-13477858967 |
|
|
Light Weight, High Strength |
Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum. Specific strength is superior to ordinary carbon steel. Anti-creeping. Impact endurance. |
|
Safety |
Good performance of electric insulation. 10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen |
|
|
index≥32, Anti-fire and Pass test of ASTM-E84. |
|
Anti-Corrosion |
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture. It has predominant advantages in anti-corrosion field. |
|
Anti-skid |
Different process mode on surface, concave, gritted, increase friction factor. Have good anti-skid function. |
|
Anti-aging |
Have more than 20 years effective service life under normal outdoor working condition. |
|
Anti-fatigue |
Moderate flexibility reduces the workers` pressure on legs and waist which is more comfortable |
|
Attractive appearance & easy maintenance |
have alternative and bright colors. Non-fading. Easily for clean. |
|
Excellent economic benefits’ |
Excellent comprehensive economic benefits |
Resin Type Comparison & Conclusion
Vinyl Ester (Type V)
Best for: Harsh chemical exposure (acids, caustics) in chemical plants, wastewater treatment, or plating.
Key Properties: Highest chemical stability, low water absorption, high strength/stiffness in seawater.
Isophthalic Polyester (Type D)
Best for: Occasional chemical splashes/spills (industrial settings).
Limitation: Less resistant than vinyl ester for prolonged chemical contact.
Food Grade Isophthalic (Type F)
Best for: Food/beverage industries with frequent wetting or cleaning chemicals.
General Purpose (Type GPI)
Best for: Cost-effective use in mild environments (walkways, dairies).
Fire-Retardant (Type XFR)
Best for: High-fire-risk areas (welding, sparking equipment).
Phenolic (Type P)
Best for: Critical fire/smoke/toxic fume resistance (oil refineries, tunnels).
Conclusion
For seawater or harsh chemical immersion, vinyl ester (Type V) is superior due to its:
Lower water diffusion (slower moisture uptake).
Higher chemical stability.
Better retention of stiffness/strength.
For fire-critical applications, phenolic (Type P) or XFR isophthalic are preferred. For cost-sensitive, low-chemical-exposure uses, GPI or Type D suffice.
Final Recommendation: Prioritize vinyl ester for durability in corrosive/water-exposed environments, and match other resins to specific needs (fire resistance, food safety, or budget).
We can offer you the following benefits if you choose to purchase from us:
– We can provide the most favorable price for our high-quality products.
– We can deliver the goods on time to your location. We have a reliable logistics network and a large inventory of Fiberglass grating in different sizes and specifications.
– We can provide reliable after-sales service for our customers. We have a professional and friendly customer service team that can answer your questions and solve your problems anytime.
– We can provide professional product customization service for our customers. You can provide us with your drawings and we can produce Fiberglass grating according to your specific requirements.
If you are interested in learning more about Fiberglass grating and how it can benefit your project, please contact Rosie. Rosie is happy to provide you with a free quote and a sample. We are confident that you will be satisfied with our products and services.
We are manufacturer of fiberglass, basalt fiber for more than 18 years, delivery time is 10 days for 20″ container.
